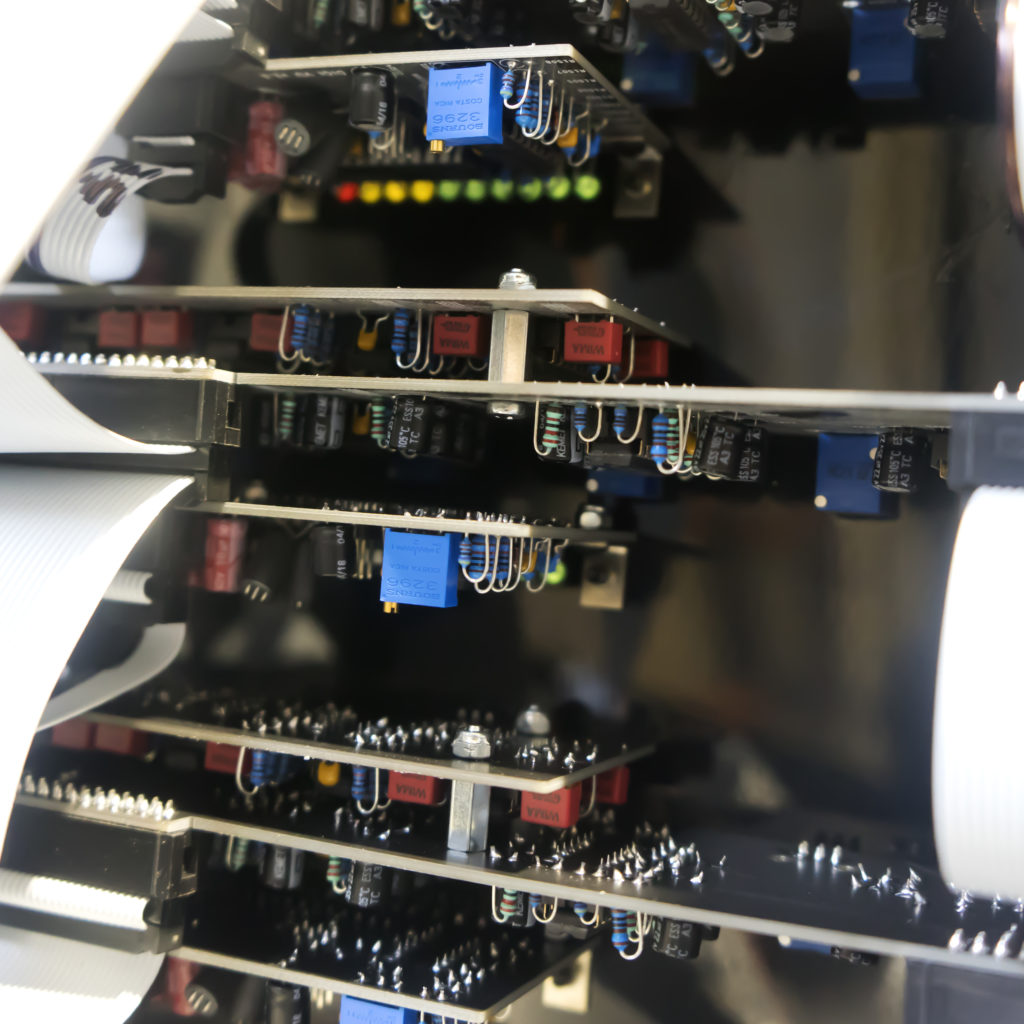

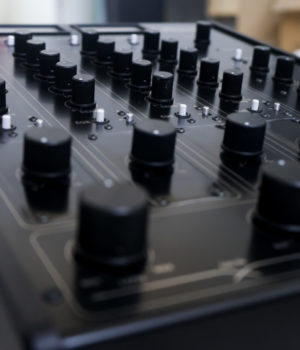

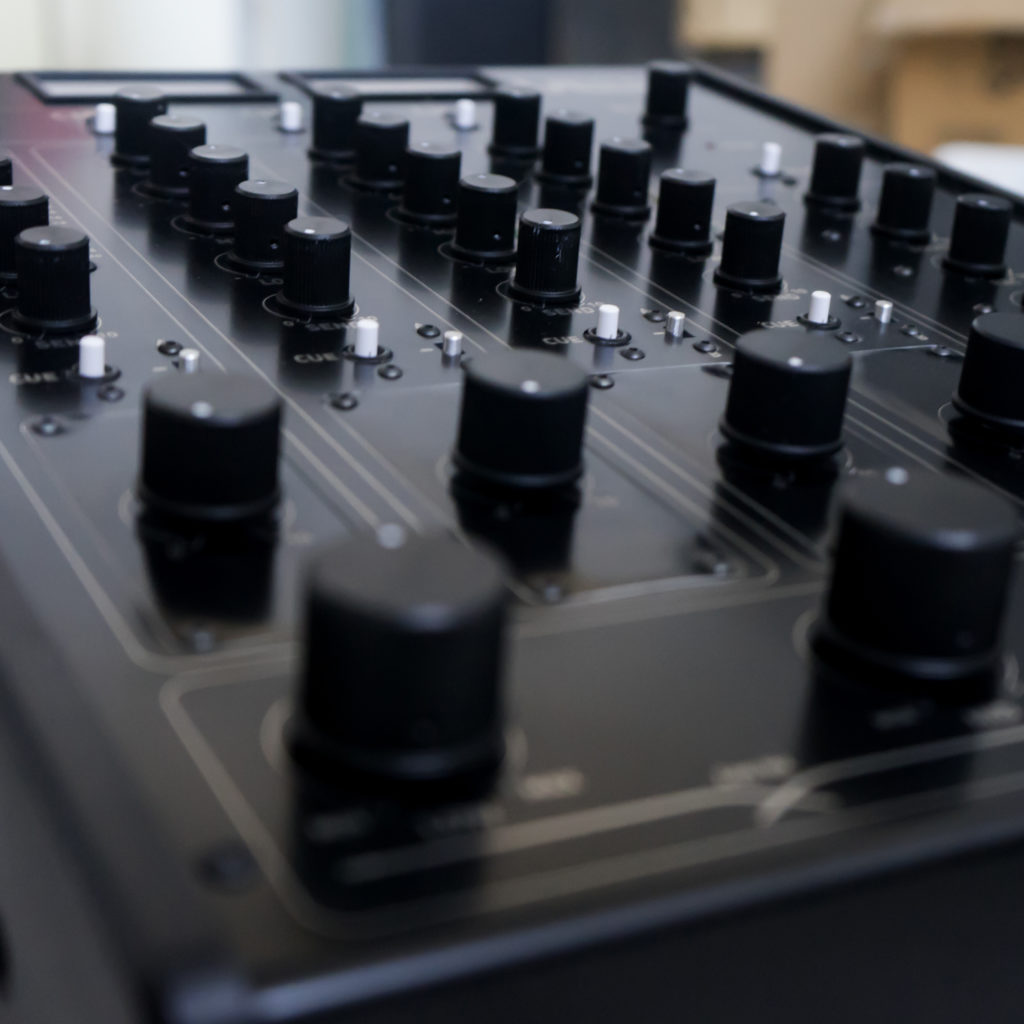

– ULISSE

A new all-in-one mixer that will be over the past products made till now.

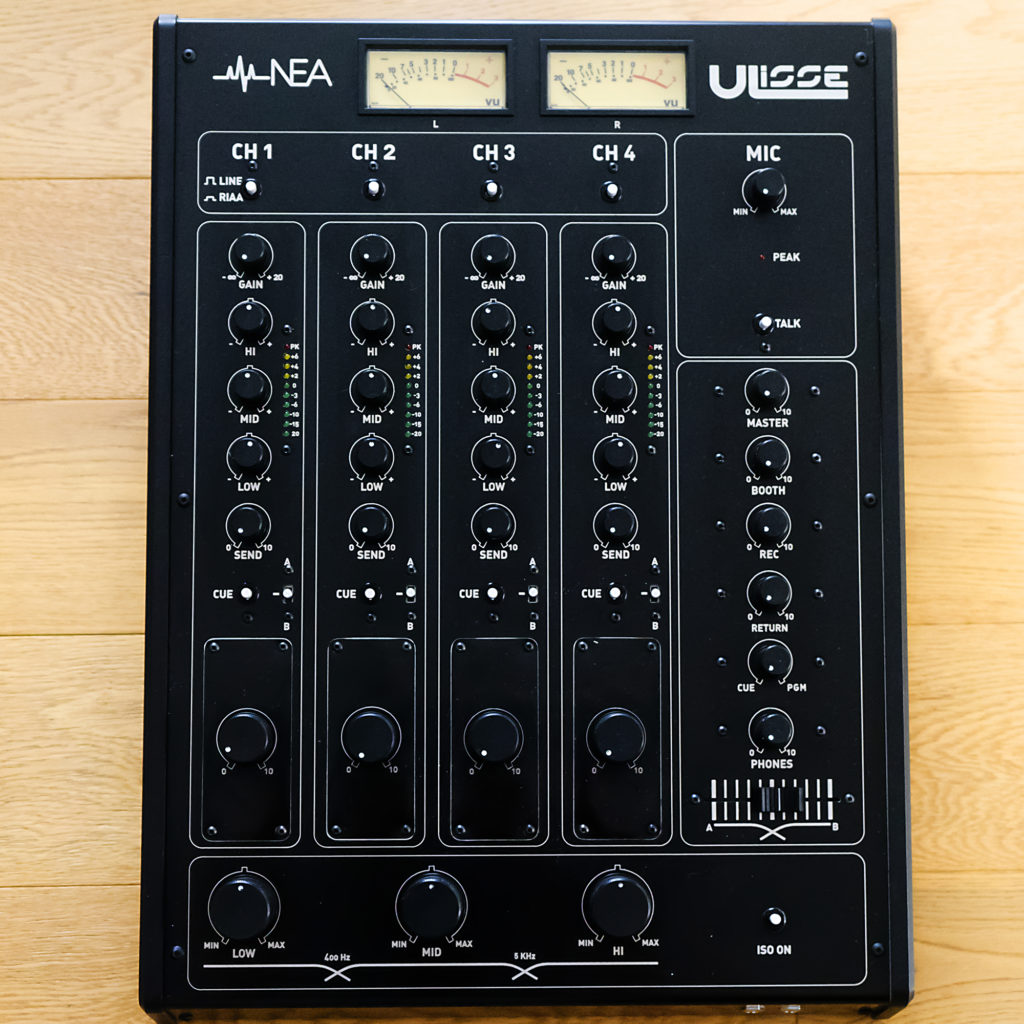

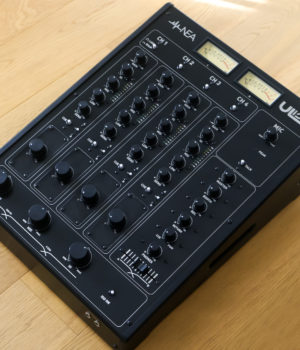

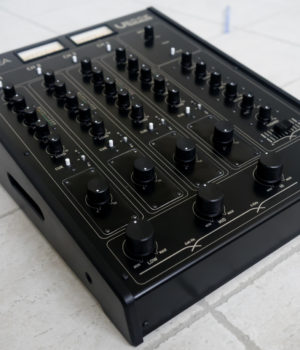

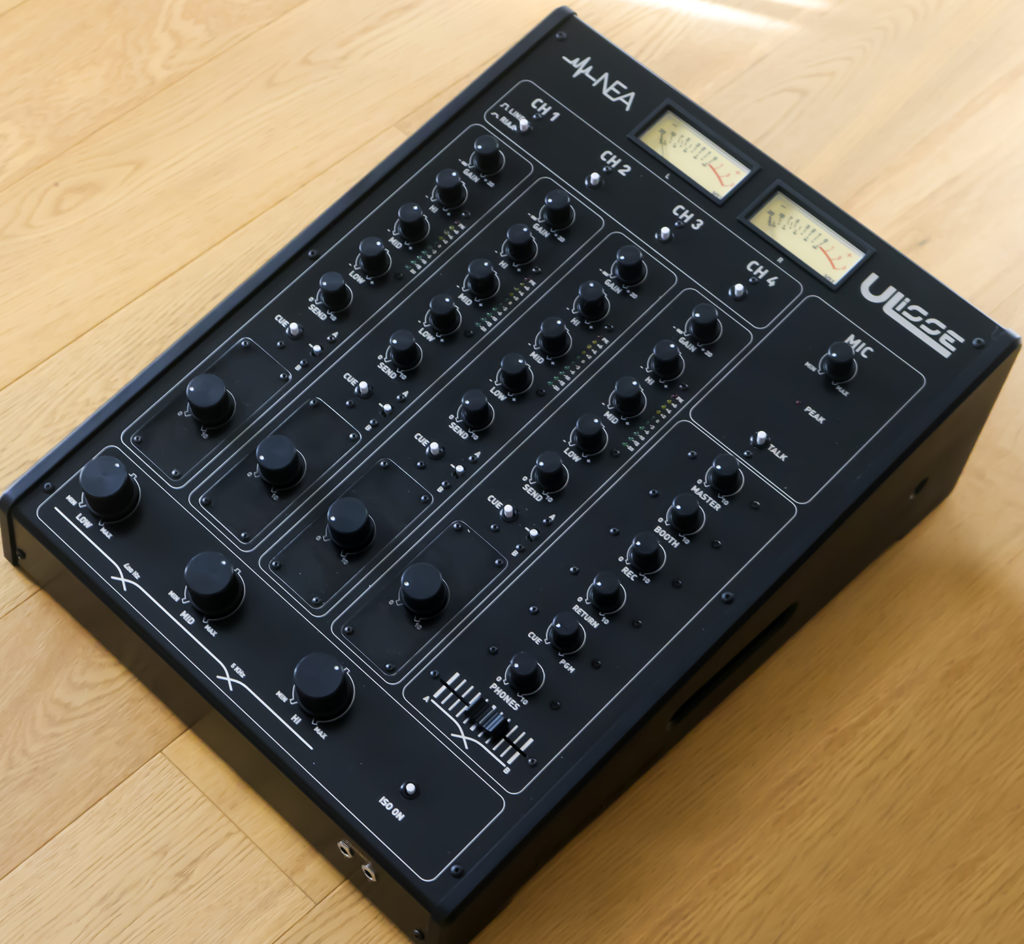

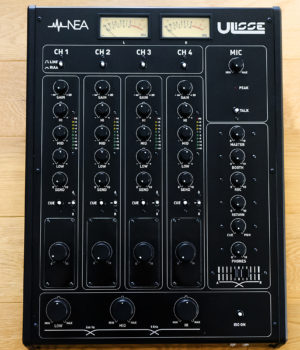

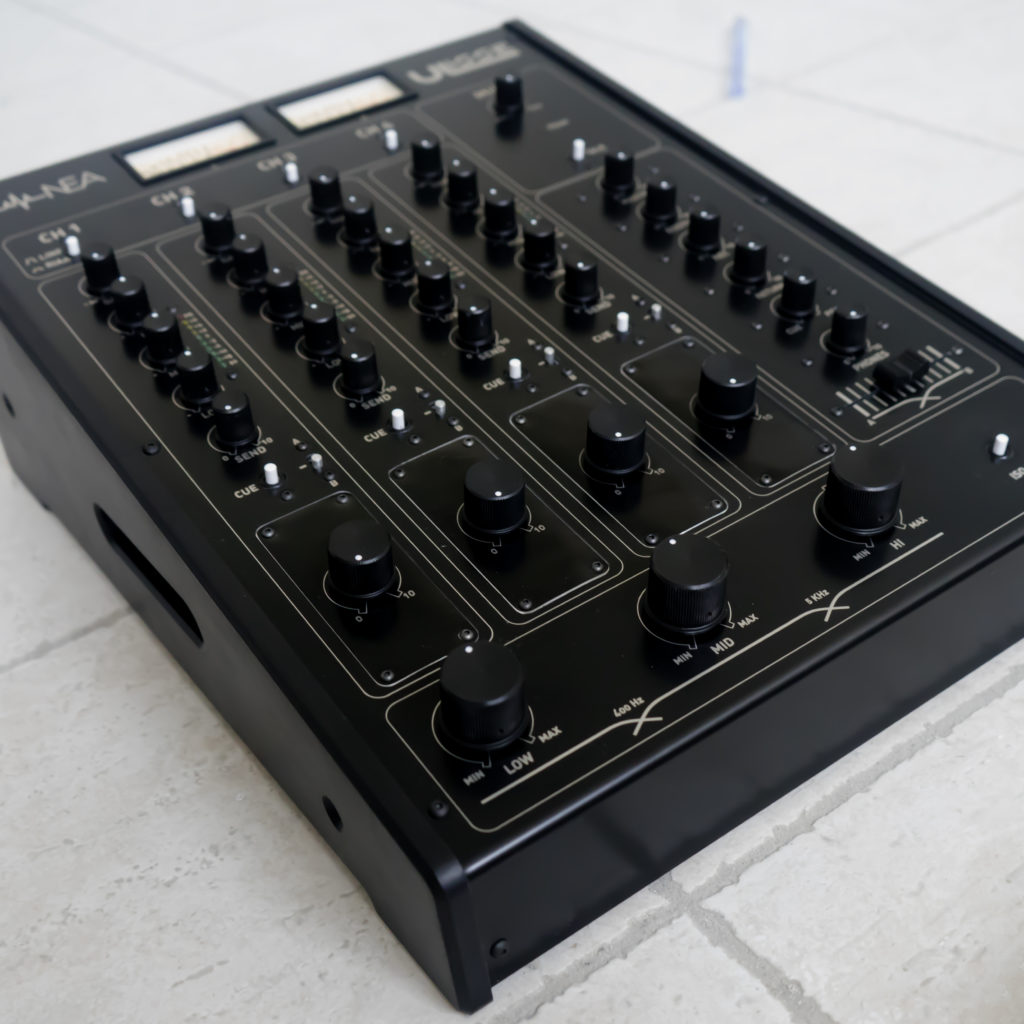

Let’s introduce you ULISSE:

As Ulysses fought so many difficulties before to come back to his beloved Ithaca, as after 2 years of inactivity we are back in the business with our new products brand.

Ulisse can satisfy your requests to be more comfortable for your mixing skills.

For each channel the customer can select his preferred solution for his personal mixer.

Infact, we give the chance to built in or rotary faders or linear faders, following our customers preferences.

As one of our best products, we integrated a master isolator frequencies in ULISSE, and improved the quality sound from the old ones.

The Master Isolator is a crossover Linkwitz-Riley, with cut off slope -24 db/octave, full cut -∞/+26 db (Flat To MAX) boosting.

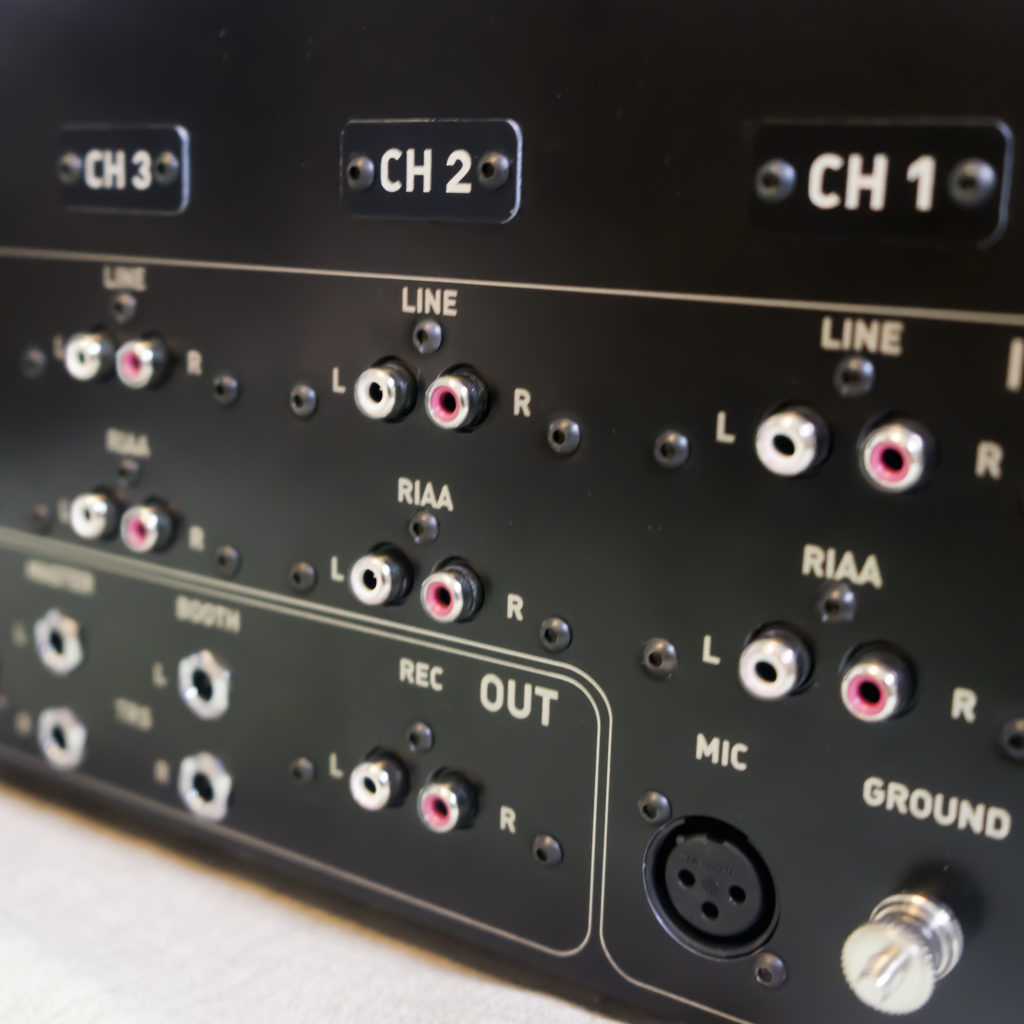

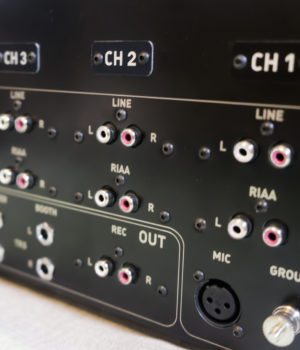

The connections layout is very clean and simple, it suggests a very comfortable and clear routing.
  •  Line Inputs
  •  Phono Inputs + Ground
  •  Mic In
  •  Send Out/Return In RCA Unbalanced
  •  Master Out A Balanced XLR
  •  Master Out B Balanced TRS
  •  Booth Out Balanced TRS
  •  Rec Out RCA Unbalanced
  •  Power Supply In
  • FREQUENCY RESPONSE ±6Hz/86KHz:
    LINE IN: -10 dbV RCA UNBALANCED
    RIAA IN: -40 dbV RCA UNBALANCED

MIC IN: XLR BALANCED nominal impedance 2.2 KOhm/ Frequency Response 20hz/20Khz, gain min 9.4 db, gain max 40 db (+/- 1 db)

  • CHANNEL STRIP:

GAIN: -inf +20 db, Unity Gain 40% of rotation

ISOLATOR CHANNEL: Low (±6/400 hz) Mid (400/5000hz) Hi (5000/86000hz)

ISOLATOR BAND GAIN: -inf +10 db, flat 50% of rotation

SEND OUT: post fader routing
CUE SWITCH
SWITCH A/B CROSSFADER

VOLUME: rate 1:1, 0-10 Min/Max

  • MASTER ISOLATOR: -24 db/octave Filter Linkwitz Riley
    LOW: ±6/400 Hz
    MID: 400/5000 Hz
    HIGH: 5000/86000 Hz
  • ISOLATOR BAND GAIN: -inf + 26 db, unity gain 50% of rotation

ON/OFF SWITCH

  • OUTPUTS:

MASTER OUT: XLR or TRS BALANCED -inf + 23 db gain, unity gain 50% of rotation (0 db = +4dbU)

BOOTH: TRS BALANCED -inf + 23 db gain, unity gain 50% of rotation
REC OUT: RCA UNBALANCED -inf + 23 db gain, unity gain 50% of rotation

  • SEND/RETURN: RCA UNBALANCED
  • PHONES OUTPUTS:
    2x PLUGS

Preamp Power: 2 w RMS, 2.5 w Peak for 16 ohm

  • METERING:

CHANNEL LED METERS: calibrated on -10dbV
MASTER VU METERS: SIFAM AL29 calibrated on +4dbU

  • POWER SUPPLY: UNIVERSAL

Input with 3 pole IEC320-C14 socket Output 5VDC at 4A;
12VDC at 2A; -12VDC at 0.5A with DIN 5 pin plug: Class I

  • DIMENSIONS:

400mm x 513mm x 177mm x70 mm

  • WEIGHT:

8,5 Kg

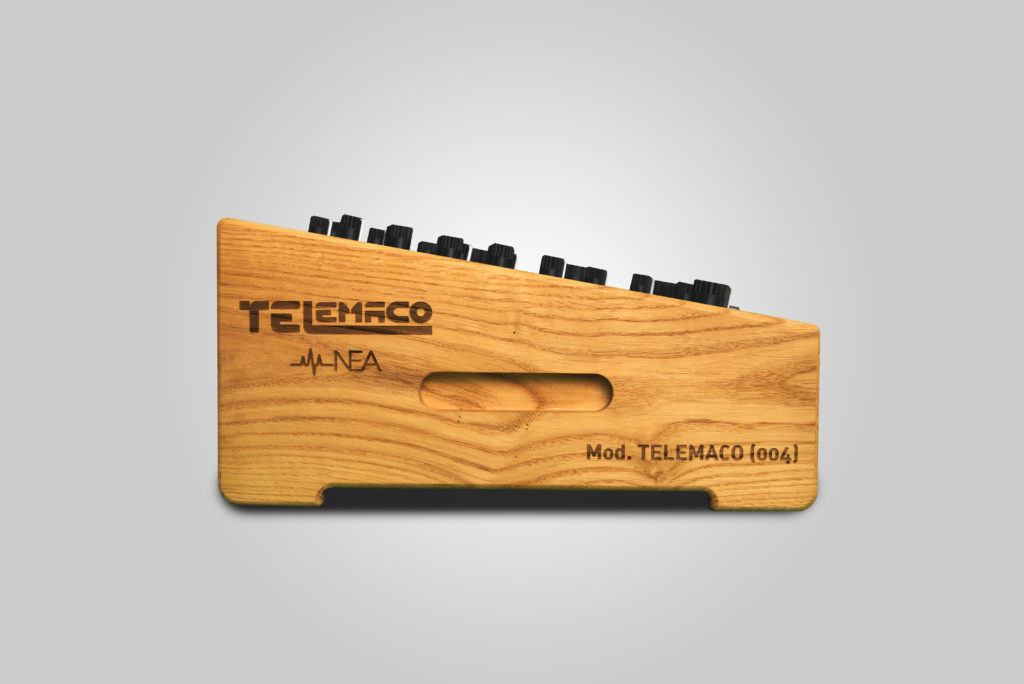

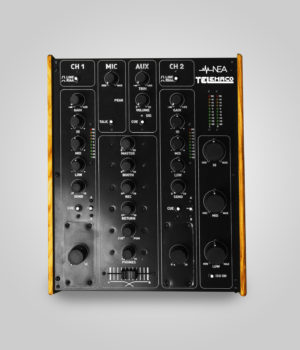

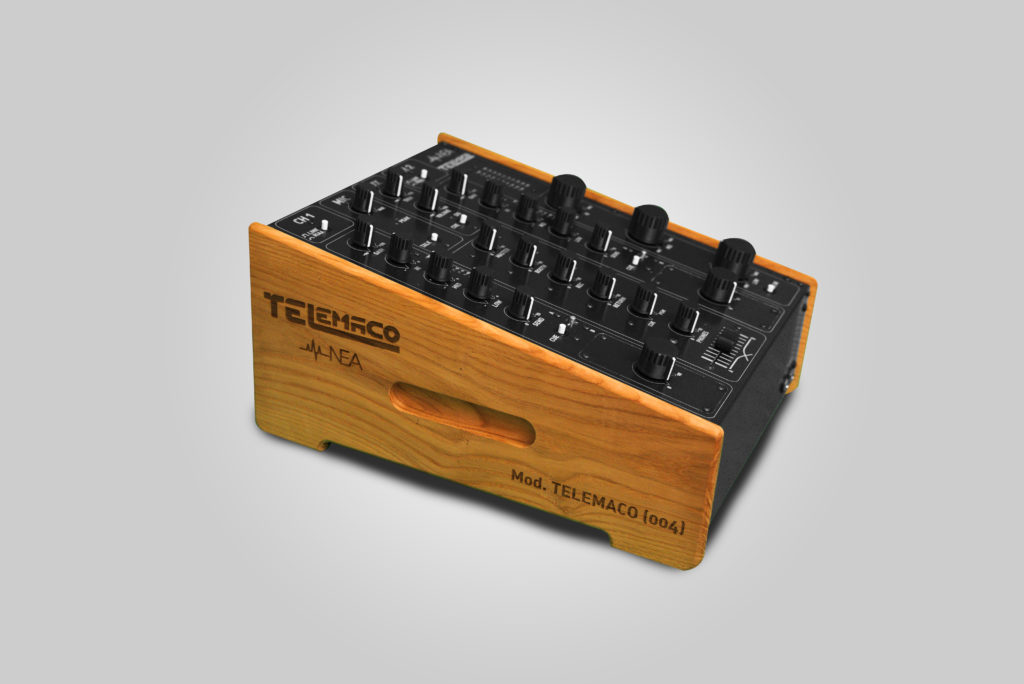

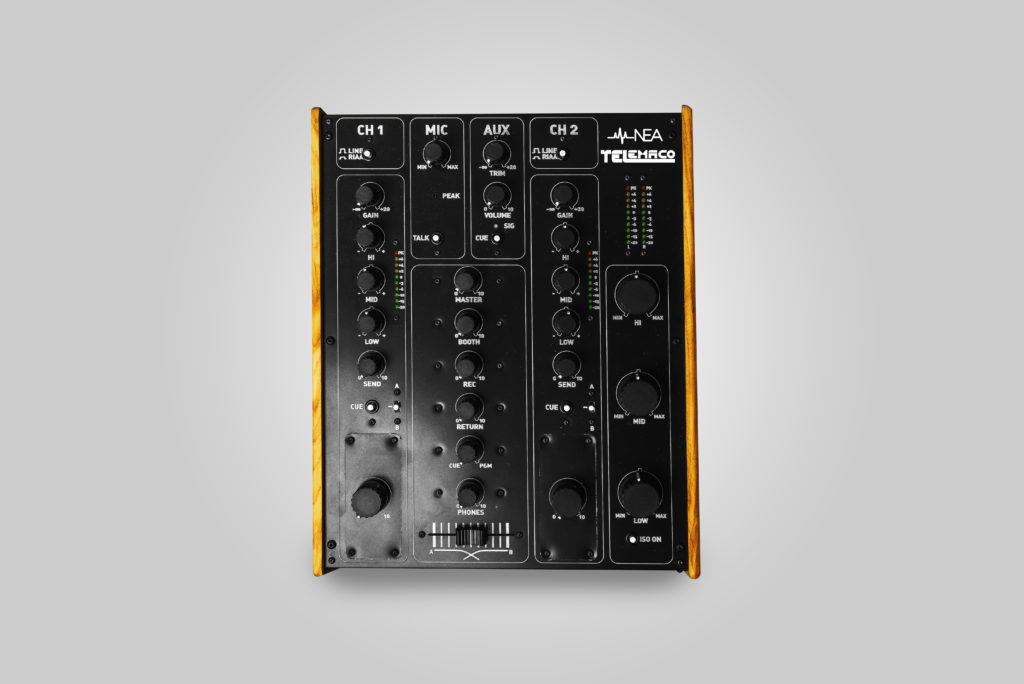

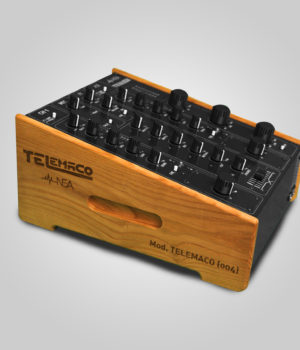

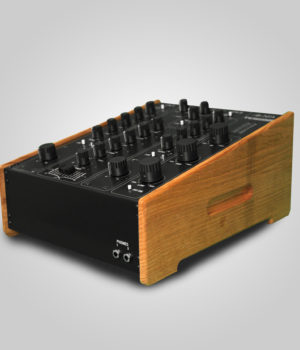

– TELEMACO

Son of Ulisse, this is the 2 channels version of our already winning product. More compact, same power, same quality.

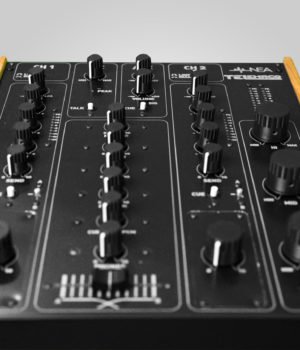

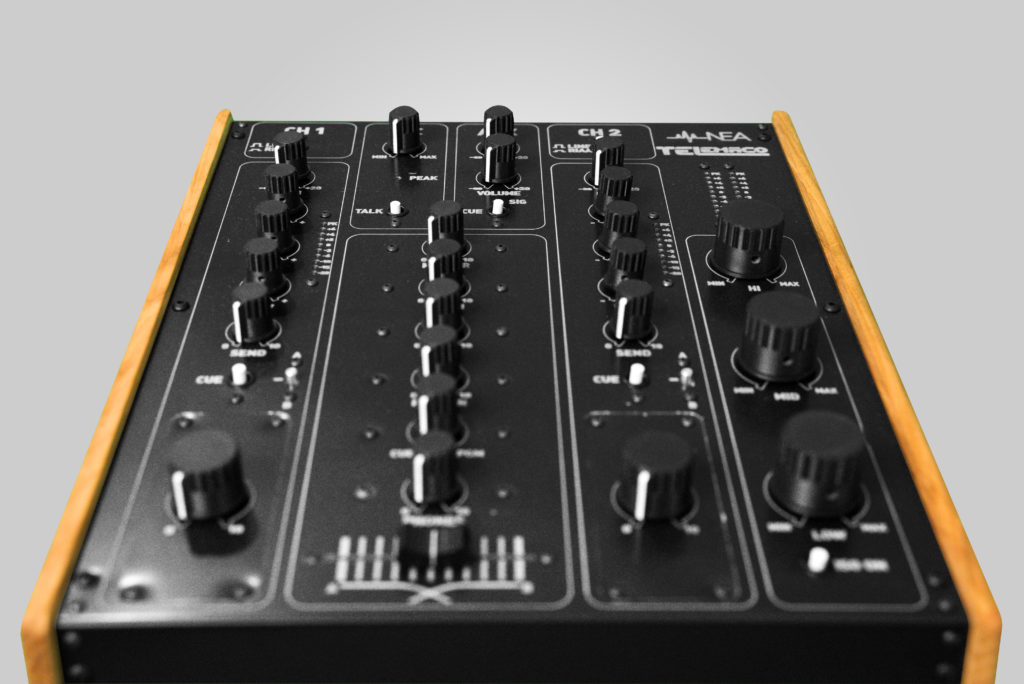

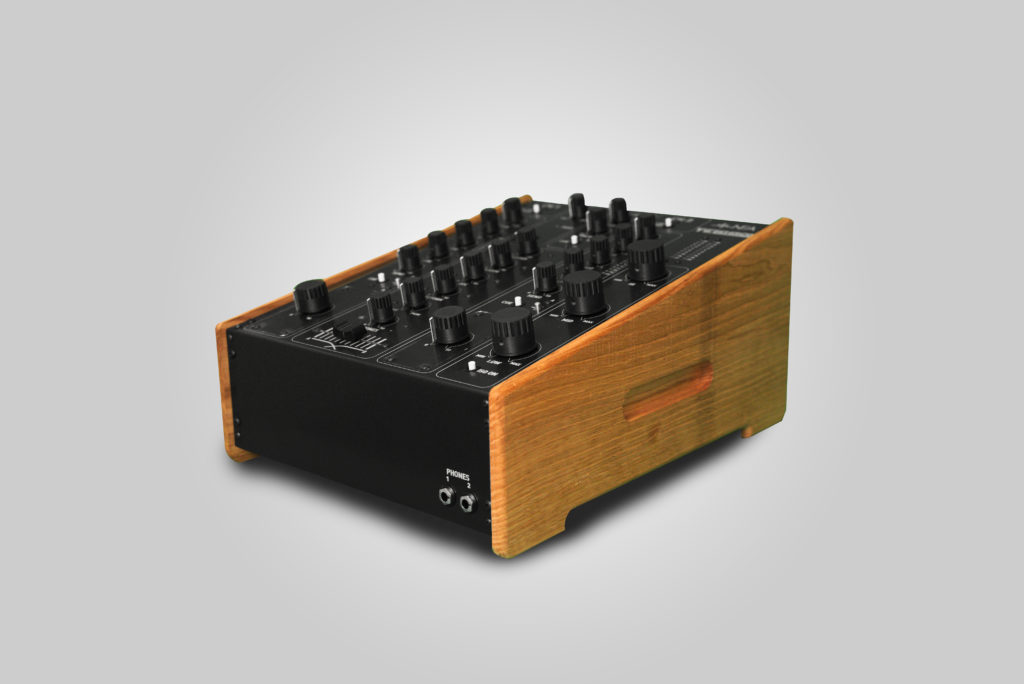

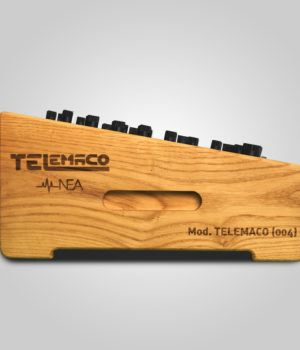

Let’s introduce you TELEMACO:

TELEMACO isn’t more than the compact version of Ulisse: two channels mixer, a third aux input source, the same electronic features and power of the bigger one.

Telemaco can satisfy your requests to be more comfortable for your mixing skills.

For each channel the customer can select his preferred solution for his personal mixer.

Infact, we give the chance to built in or rotary faders or linear faders, following our customers preferences.

As one of our best products, we integrated a master isolator frequencies in Telemaco, and improved the quality sound from the old ones.

The Master Isolator is a crossover Linkwitz-Riley, with cut off slope -24 db/octave, full cut -∞/+26 db (Flat To MAX) boosting.

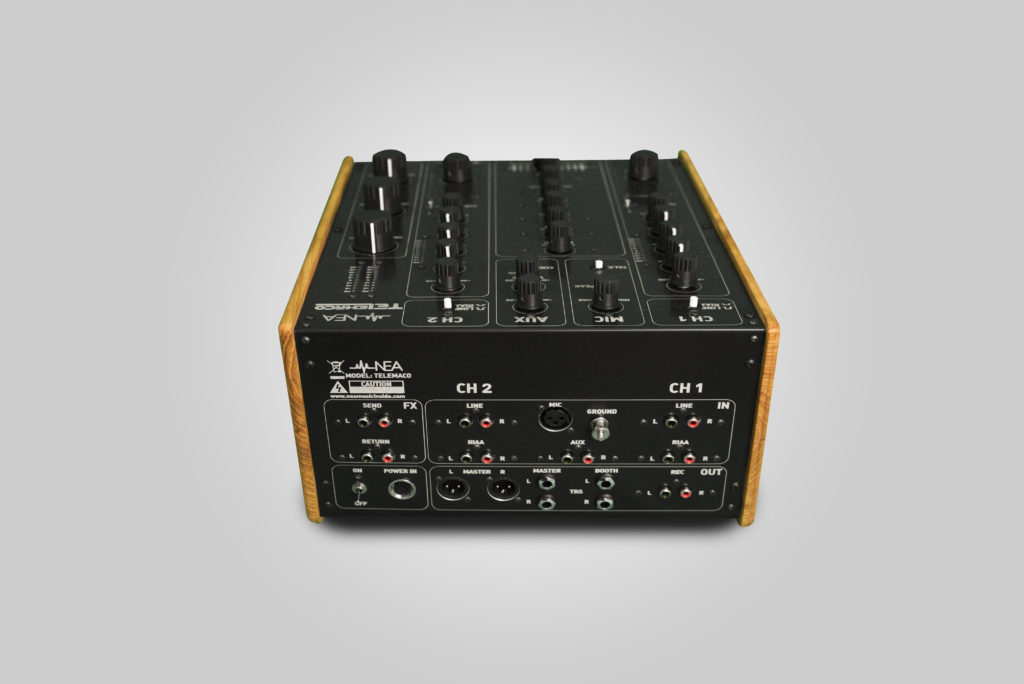

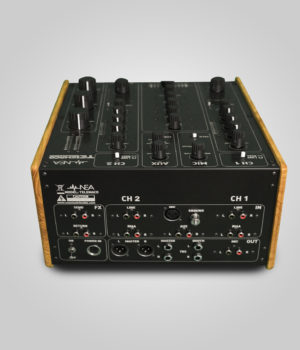

The connections layout is very clean and simple, it suggests a very comfortable and clear routing.
  •  Line Inputs
  •  Phono Inputs + Ground
  •  Mic In
  •  Send Out/Return In RCA Unbalanced
  •  Master Out A Balanced XLR
  •  Master Out B Balanced TRS
  •  Booth Out Balanced TRS
  •  Rec Out RCA Unbalanced
  •  Power Supply In
  • FREQUENCY RESPONSE ±6Hz/86KHz:
    LINE IN: -10 dbV RCA UNBALANCED
    RIAA IN: -40 dbV RCA UNBALANCED

MIC IN: XLR BALANCED nominal impedance 2.2 KOhm/ Frequency Response 20hz/20Khz, gain min 9.4 db, gain max 40 db (+/- 1 db)

  • CHANNEL STRIP:

GAIN: -inf +20 db, Unity Gain 40% of rotation

ISOLATOR CHANNEL: Low (±6/400 hz) Mid (400/5000hz) Hi (5000/86000hz)

ISOLATOR BAND GAIN: -inf +10 db, flat 50% of rotation

SEND OUT: post fader routing
CUE SWITCH
SWITCH A/B CROSSFADER

VOLUME: rate 1:1, 0-10 Min/Max

  • MASTER ISOLATOR: -24 db/octave Filter Linkwitz Riley
    LOW: ±6/400 Hz
    MID: 400/5000 Hz
    HIGH: 5000/86000 Hz
  • ISOLATOR BAND GAIN: -inf + 26 db, unity gain 50% of rotation

ON/OFF SWITCH

  • OUTPUTS:

MASTER OUT: XLR or TRS BALANCED -inf + 23 db gain, unity gain 50% of rotation (0 db = +4dbU)

BOOTH: TRS BALANCED -inf + 23 db gain, unity gain 50% of rotation
REC OUT: RCA UNBALANCED -inf + 23 db gain, unity gain 50% of rotation

  • SEND/RETURN: RCA UNBALANCED
  • PHONES OUTPUTS:
    2x PLUGS

Preamp Power: 2 w RMS, 2.5 w Peak for 16 ohm

  • METERING:

CHANNEL LED METERS: calibrated on -10dbV
MASTER VU METERS: SIFAM AL29 calibrated on +4dbU

  • POWER SUPPLY: UNIVERSAL

Input with 3 pole IEC320-C14 socket Output 5VDC at 4A;
12VDC at 2A; -12VDC at 0.5A with DIN 5 pin plug: Class I

  • DIMENSIONS:

303mm x 78mm x 145mm x 385mm

  • WEIGHT:

5,6 Kg
